Cell phone signal booster installation (1/2 feeders, 50-12 cable connector manufacturing method)
1/2 feeder operators dedicated cable loss is extremely small, only connect when 75-5 100 meters, 1/2 feeder least 500 meters can be connected to engineering class is required cable connection is simple, easy installation, low failure rate but the premise is a bit costly, but you'll like it.
1) 1/2 feeder connector;
![](/pic/other/2015-09-24-15-15-436.jpg)

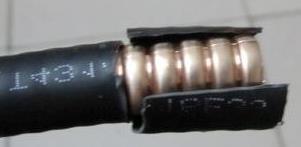

2) Remove the PE jacket;
![](/pic/other/2015-09-24-15-16-202.jpg)
3) put on waterproof plastic ring;
![](/pic/other/2015-09-24-15-16-569.jpg)

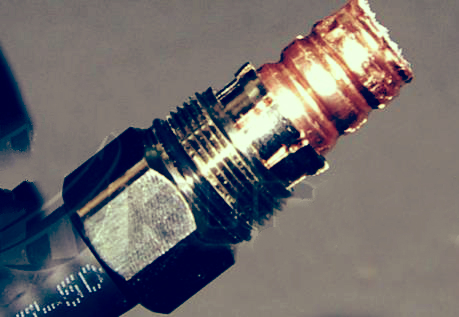

4) do not require welding, brass ring stuck to each other and the joint design, firm and convenient;
![](/pic/other/2015-09-24-15-18-161.jpg)

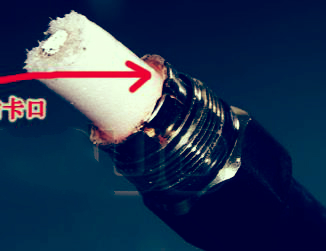

5) cut white PE, copper core cut to the proper length, polished to ensure good contact;
![](/pic/other/2015-09-24-15-19-379.jpg)
![](/pic/other/2015-09-24-15-20-020.jpg)

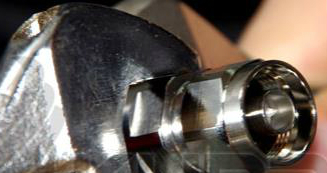

6) put on the other end of the joint, with a wrench and tighten;
![](/pic/other/2015-09-24-15-20-396.jpg)

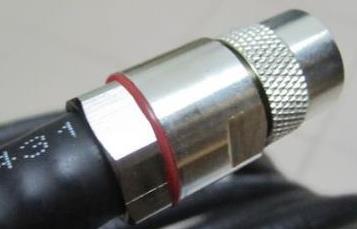

7) If you can, wrap waterproof tape, produced;
![](/pic/other/2015-09-24-15-21-027.jpg)

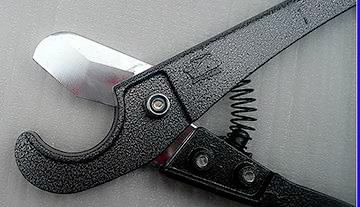

We also provide scissors product, easy to use and inexpensive.
![](/pic/other/2015-09-24-16-26-259.jpg)
